产品详情

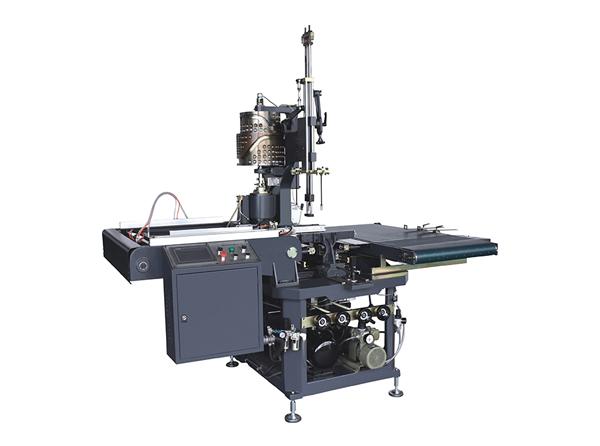

TB-XH-420-6自动纸盒成型亚娱体育（中国）官方网站系统是用PLC控制。利用光电监控各部位动作,运行中出现异常,能自动停亚娱体育（中国）官方网站显示原因,以便及时排除故障。

1.操作简单，调节方便，稳定耐用。

2.无需胶粘，无需打钉，全自动纸板折叠穿插成型。

3.能与自动化配套，形成生产线，自动化程度高。

纸盒成型亚娱体育（中国）官方网站视频介绍>>

技术参数 Technical Parameters

型 号 Model TB-XH-420*320-6

面纸尺寸 Glossy paper size Amin160 Amax 580 Bmin260 Bmax 680

成品纸盒尺寸 Finished DRAWER min 140*75*20 max 400*300*120

折入纸边尺寸 Folding cardboard Size 12-35mm

面纸厚度 Glossy paper thickness 10-250g/m2

纸板厚度 Cardboard thickness 1-3mm

定位精度 Positioning accuracy 士0.50mm

生产速度 Production speed Max 25-30个/分

电亚娱体育（中国）官方网站功率 Motor Power 15kw

电热功率 Electric power 9kw

气源要求 Air source 0.6Mpa

亚娱体育（中国）官方网站器重量 Weight 4T

整亚娱体育（中国）官方网站尺寸 Machine size L6400xW3000xH2500

亚娱体育（中国）官方网站主要生产的产品：全自动打扣亚娱体育（中国）官方网站、纸盒成型亚娱体育（中国）官方网站、天地盖纸盒成型亚娱体育（中国）官方网站、冷镦亚娱体育（中国）官方网站等

1.The machine Feida adopts the push-back type paper feeding structure,and the overall action is full pneumatic electronic control, and the structure is simple and reasonable.

2. Gluing copper scraper new design, effectively prevent the rolls, to ensure the normal operation of the machine.

3. Hot Melt automatic cycle, stirring, gluing systems. (Optional glue viscometer)

4. Hot-melt adhesive tape (nylon belt) automatic conveying and slitting device, complete the four-corner cornering operation of the cardboard inner box at one time.

5. The conveyor bottom with a vacuum suction fan control through the gum tissues relative offset does not occur.

6. The rubberized paper and cardboard inner box adopt photoelectric servo motor correcting device to position and fit.

7. Carton forming unit can automatically wrapping, folding and forming folding ear coherence jobs once completed.

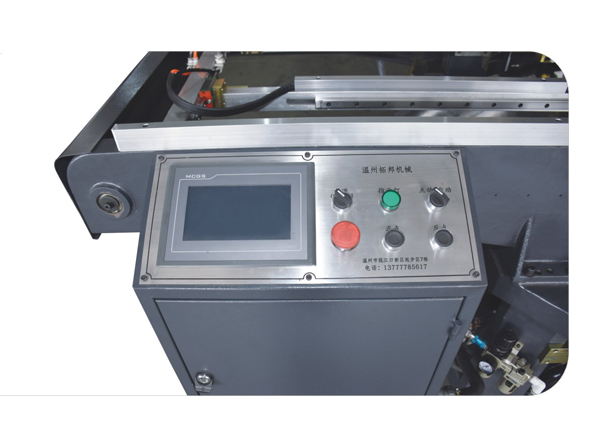

8. The machine adopts PLC control, photoelectric tracking system, touch screen interce, to achieve a carton automated production process of forming.
